Emerson Telecom Rectifier r48-1800a 48v 1800w

For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.

Product Description

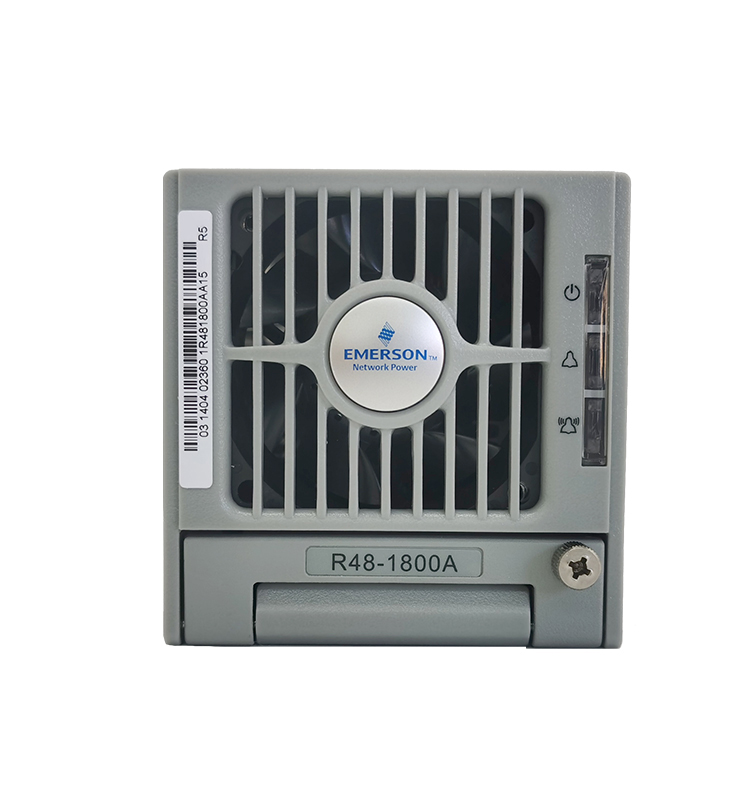

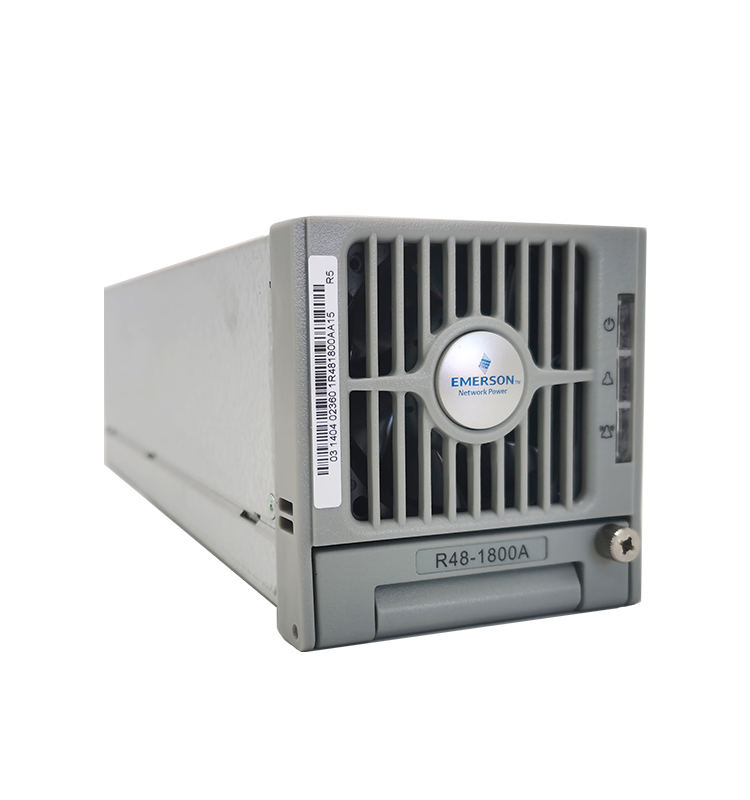

Emerson Telecom Rectifier r48-1800a 48v 1800w

Optimized depth reduced footprint
allows installation in short-depth racks
and cabinets
DSP (Digital Signaling Processor)
means fewer components, optimized
operation and active load sharing for
increased reliability
Compliant with global standards
delivers quality, performance
and reliability no matter what the
application or location demands
High efficiency, up to 91% reduces
power consumption for lower
operating costs
Hot pluggable facilitates future
extensions
Wide input voltage range operates in
the most demanding environments
where input voltage changes
Wide temperature operating range
(-40°C / -40°F to +80°C / 176°F) – meets
the harshest climatic environment
requirements
Emerson Telecom Rectifier r48-1800a 48v 1800wEmerson Telecom Rectifier r48-1800a 48v 1800w

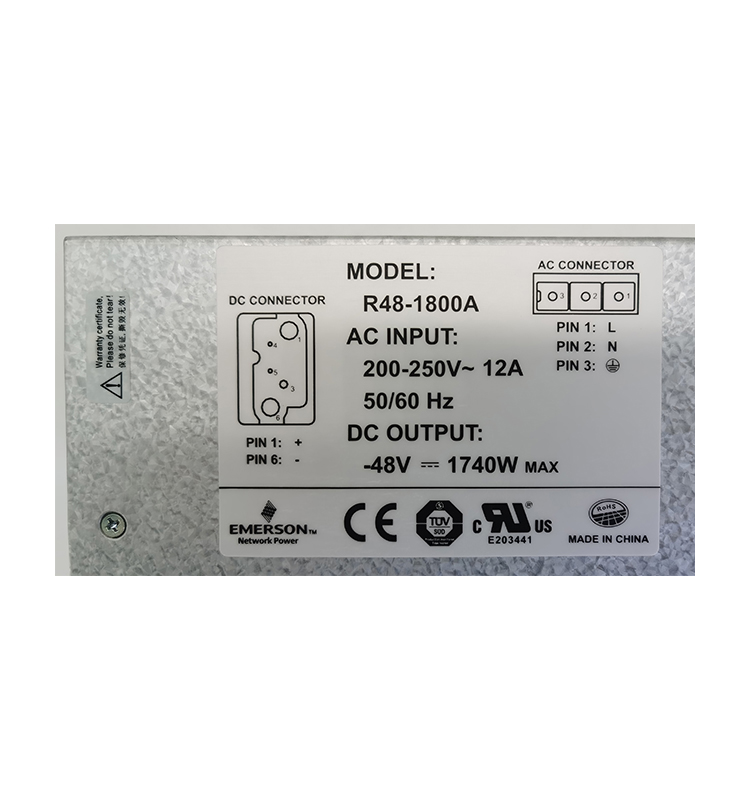

Technical Specifications, R48-1800
AC Input
Input Voltage, Nominal
200 to 250 V AC
Input Voltage, Permitted Variation
85 to 300 V AC
Line Frequency
45 to 65 Hz
Max Input Current
12 A
Power Factor
0.99
THD, Total harmonic distortion
<5% from 50 to 100% of rated load
DC Output
Output Voltage, Adjustment Range
-42 to -58 V DC
Output Power
1700W@Vout >48V DC
Output Power, Derated for Input Voltage See Diagram
Output Current
35.4 A
Output current limit set point
0 to 35.4 A
Efficiency
91%
Psophometric Noise (System)
<1mV at 0 to 100% of rated load; <32 dBrnc at 0 to 100% of rated load
Temperature Derating
See Diagram
Control and Monitoring
Rectifier Alarm and Signaling
Alarm and status reported via CAN bus to system controller
Visual Indications
Green LED: Normal Operation
Yellow LED: Alarm
Red LED: HVSD Indicating Lamp
Flashing Red LED: Fan Failure
R48-1800
Environmental
Temperature Range, Operating
-40 to +80°C, -40 to +176°F
Temperature Range, Storage
-40 to +80°C, -40 to +176°F
Relative Humidity
0 to 95%
Altitude
2000 m, 6560 ft at full power
EMC
ETSI EN 300 386 class B, FCC CFR 47 Part 15 class B,
Telcordia GR-1089-CORE class B
Safety
IEC 60950, EN 60950, UL 60950
Mechanics
Dimensions (H×W×D)
86×84.5×272 mm(3.39×3.33×10.71 inches)
Weight
2.4 kg (5.29 Ibs)
Other parts
Controller Units
See separate ACU, SCUand LCUdatasheets
Ordering information
Product Name
R48-1800
Shelf 19 inch with 5 rectifier positions
Shelf 19 inch with 4 rectifier positions +1 controller position
Shelf 23 inch with 6 rectifier positions
Shelf 23 inch with 5 rectifier positions +1 controller position
