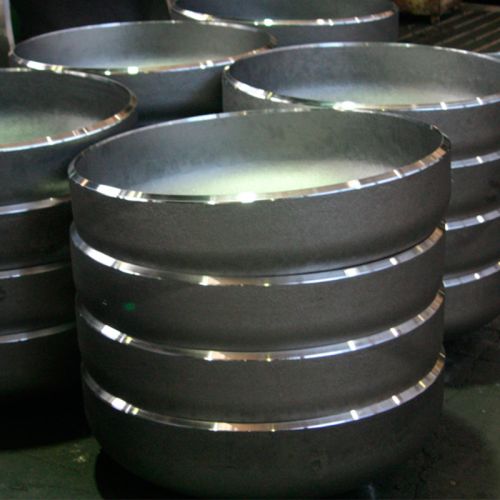

Butt Weld Fitting Cap

Yadu group specializes in Butt Weld Fitting Cap Seamless Size: DN15-DN1200;Welded Size: DN200-DN2000;Standard:ASME B16.9; GB12459; DIN2615; GOST17375; JIS B2311;Material:A234-WPB; A420-WPL3 / WPL6; WP5; WP9; WP11; WP22; NACE MR-0175 API5L-X42 / 46 / 52 / 56 / 60 / 65 / 70 / 80(NS / MS); A403-WP304/L; WP316/L; S31803; 2205.

Product Description

General Description

Hebei Yadu Pipeline Equipment Group Co., Ltd. is a Chinese leading manufacturer & supplier of high-pressure pipe fittings,pipelines and flanges for over 40 years experience.

Our main products are High pressure pipe caps,elbows,tees,reducers,bend,flanges,forged socket fittings,forged threaded fittings etc.Production range:Nominal Diameter:DN10-DN3600;Wall Thickness:3mm-100mm;Material:carbon steel,alloy steel,stainless steel etc. International Standard: ASME B16.9;GB12459;DIN2615;GOST17375;JIS B2311 etc.

Our products are widely used in industrial pipelines in petroleum, chemical, natural gas, electric power and nuclear power, metallurgy, shipbuilding, food, pharmaceutical and other industries.

The company has established a sound quality assurance system in strict accordance with the ISO9001:2000 quality management standard, and can organize production in accordance with international advanced standards, and has obtained "international standards ASTM, API, CE, GOST and other certifications", pressure piping components manufacturing certificate, and obtained the French "Factory Approval Certificate" from Classification Society, China Classification Society, American Bureau of Shipping, etc.

Yadu Group's products are sold to more than 30 countries,  all over Middle East, Southeast Asia, South America, Europe. Yadu Group is a manufacturer of high-pressure pipes and fittings serving the world. Competitive price, excellent quality and best service, we are your best choice. Looking forward to cooperating with your company. Yadu will work side by side with you to meet your needs.

Product Description


Pipe cap




Seamless Size:DN15-DN1200

Welded Size:DN200-DN2000


SCH10;SCH20;SCH30;STD;SCH40;SCH60;SCH80;SCH100;SCH120;SCH160;XS;XXS;Max Thickness To 150mm


A234-WPB;A420-WPL3/ WPL6;WP5;WP9;WP11;WP22;NACE MR-0175



ASME B16.9; GB12459; DIN2615; GOST17375; JIS B2311


Anti corrosive paint;3LPE Coating;Galvanized (Hot Dipped Elector-Plating) etc.


Chemical Elements,Mechanical Property,Metallographic Test,HIC /SSC,Heat Treatment,Ultrasonic Test,Penetration Test,Magnetic Powder Test,X-Ray Test;Hydraulic Pressure Test,Blasting Experiment


Water Disposal,Electric Power,Chemical Engineering,Ship Building,Nuclear Energy,Garbage Disposal,Natural Gas, Petroleum Oil.

 Pipe cap is a product used to plug stainless steel pipes. It is a product used as a container after the end of the pipe or by welding two heads on both ends of a round pipe. Similar products include blind plates, caps, plugs, etc.

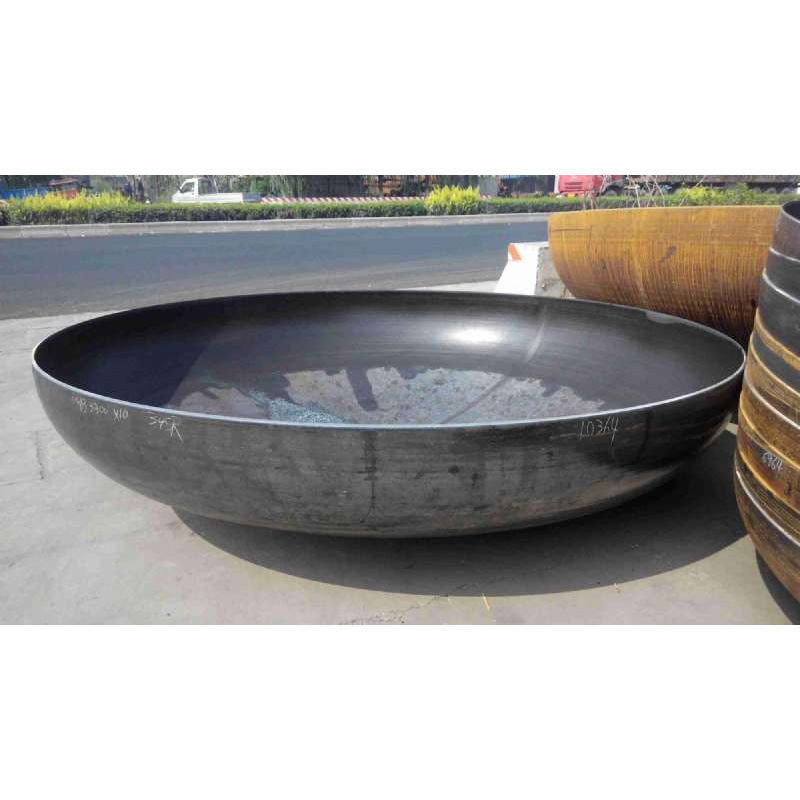

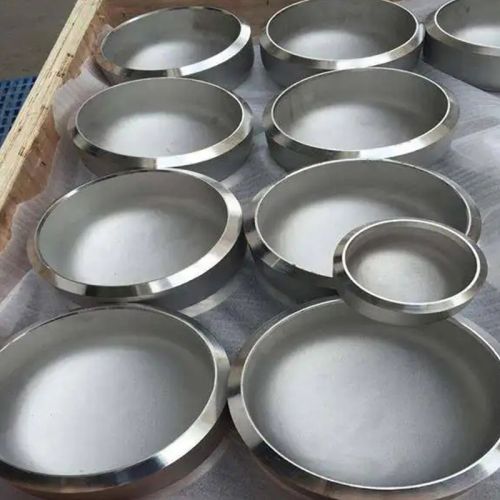

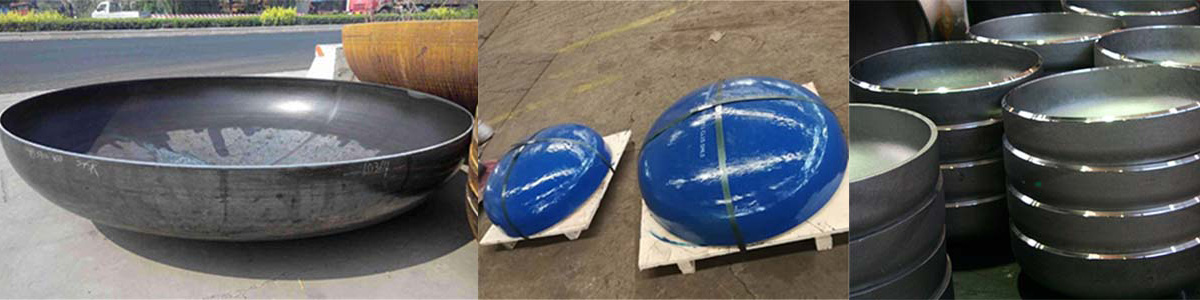

Alloy high-pressure thick-walled pipe caps are industrial pipe fittings that are welded on the pipe end or mounted on the external thread of the pipe end to cover and block the pipe. It is used to close the pipe and has the same function as the pipe plug. The convex pipe cap includes: hemispherical pipe cap, Oval caps, disc caps and spherical caps. Our caps include carbon steel caps, stainless steel caps, alloy caps, etc., which can meet your different needs.

Alloy high pressure thick wall caps also require control of the radius of curvature. Pipe caps have certain production standards and forms in actual production and production. In actual use, production and control are carried out in accordance with specific methods and principles to ensure that the produced pipe caps have certain outer diameter, inner diameter, wall thickness, etc. production standards and methods.

Alloy high pressure thick wall cap has the following characteristics:

1. Non-toxic and hygienic: it can be used for drinking water pipes. It is also non-polluting to the environment and can be recycled.

2. Corrosion resistance: It is resistant to corrosion by a variety of chemical substances, will not rust, and will not breed bacteria.

3. No scaling: The inner and outer walls of the product are smooth, the friction coefficient is only 0.007, the flow resistance is small, and the water delivery capacity is strong.

4. Light weight: easy to transport and install.

5. Beautiful appearance: This is inseparable from the perfect production technology and process.

Alloy high pressure thick wall cap technical parameters:

Diameter: DN15-DN1200

Wall thickness: SCH5-SCH160

Standard: ASME DIN JIS BS GB/T JB SH HG, as follows: GB/T12459-2005, GB/T13401- 2005, ASME B16.9, SH3408, H3409, HG/T21635, DL/T695, SY/T0510, DIN2617

Uses: water, beverages, beer, food, petrochemicals, nuclear power, machinery, medical equipment, fertilizers, shipbuilding, waterproofing, pipes, etc.

Butt Weld Fitting Cap

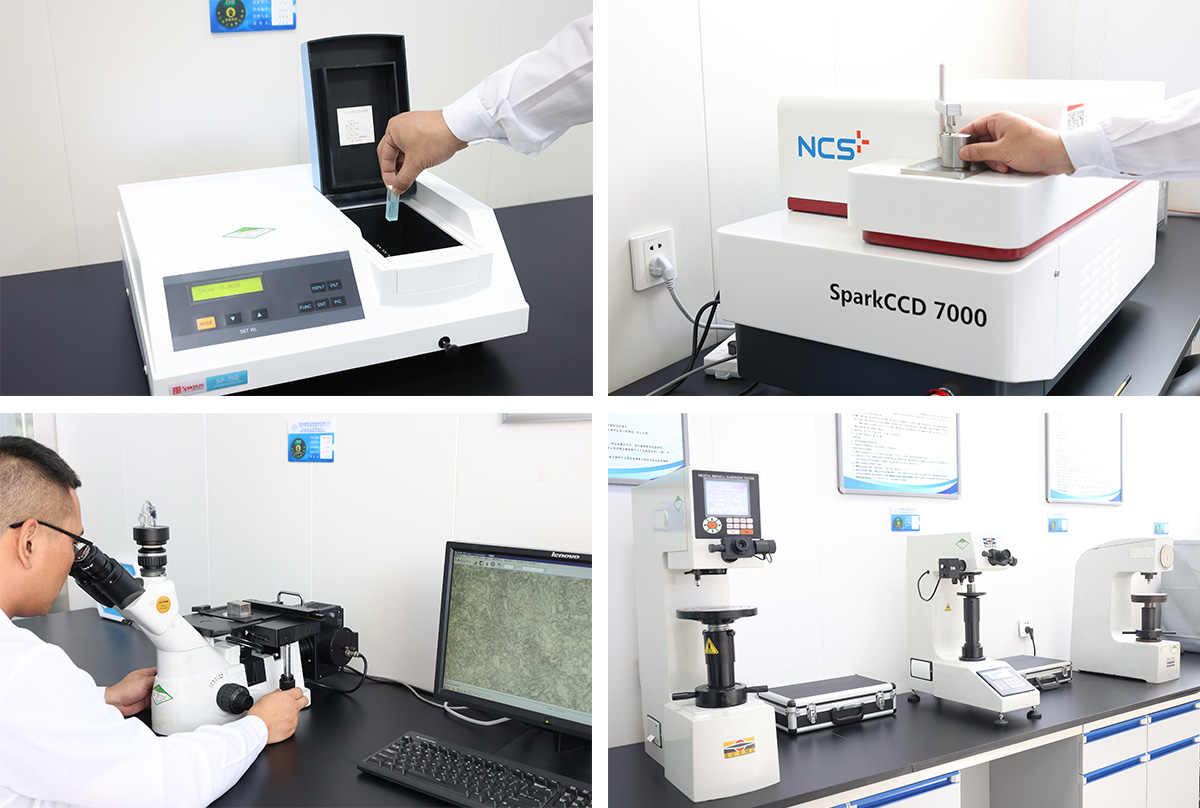

Test and Inspection Equipments

Butt Weld Fitting Cap


Butt Weld Fitting Cap

Why Choose Yadu Group

More than 40 years manufacturing experience in high pressure pipe fittings and flange.

Top quality products, API Certificate, CE Certificate, ERC Certificate, EC Certificate etc.

Products can be customized.

Fast response time, we promise to reply customer’s email within 24 hours

Competitive prices for giving clients the maximum profit

The shortest lead times, plenty of equipments and workers to ensure the delivery on time

Best quality after-sales service for every customer

Please fell free to share your inquiry to us.
