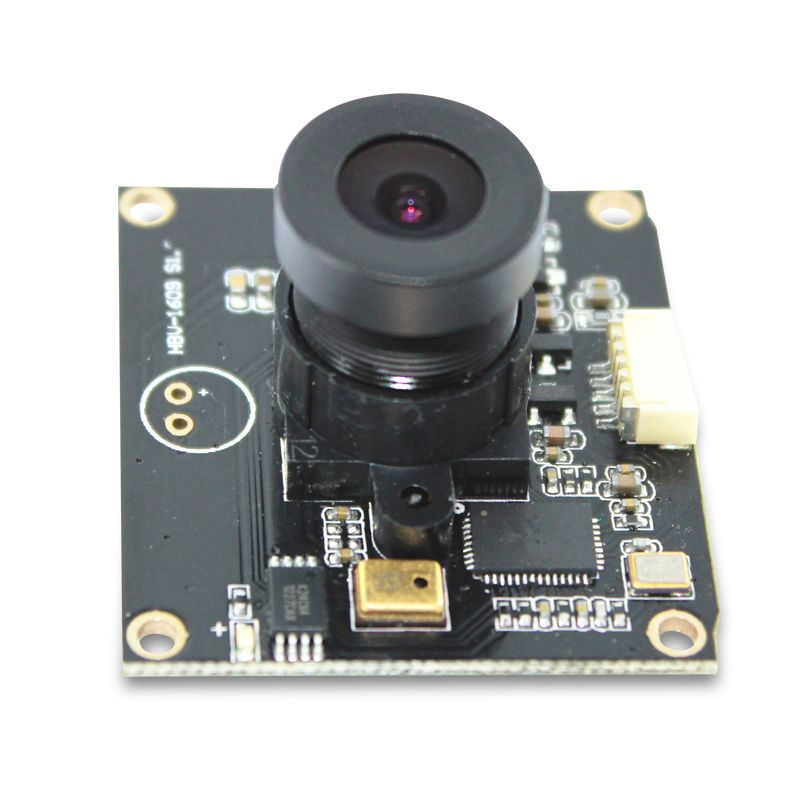

Free driver USB2.0 OV2643 android mini camera module built in microphone
A micro camera module is a small-sized camera that can be integrated into various devices for capturing images and videos. These modules are designed to be compact and lightweight, making them ideal for use in portable devices such as smartphones, tablets, drones, and wearable devices.
Product Description
Free driver USB2.0 OV2643 android mini camera module built in microphone
PRODUCT DETAILS
| Model No. |
HBVCAM-1609 S1.0 |
| Model Size |
35mm × 31.5mm × 18.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption |
400 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor |
OV2643 (1/4” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution |
1600*1200 |
| Sensitivity | 1250mv /(lux-sec) |
| Pixel Size | 2.2μm x 2.2μm |
| Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 62B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G+R |
| F/No | 2.0 |
| EFL |
2.6 mm |
| FOV | 120° |
| TV Distortion | <-50% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
