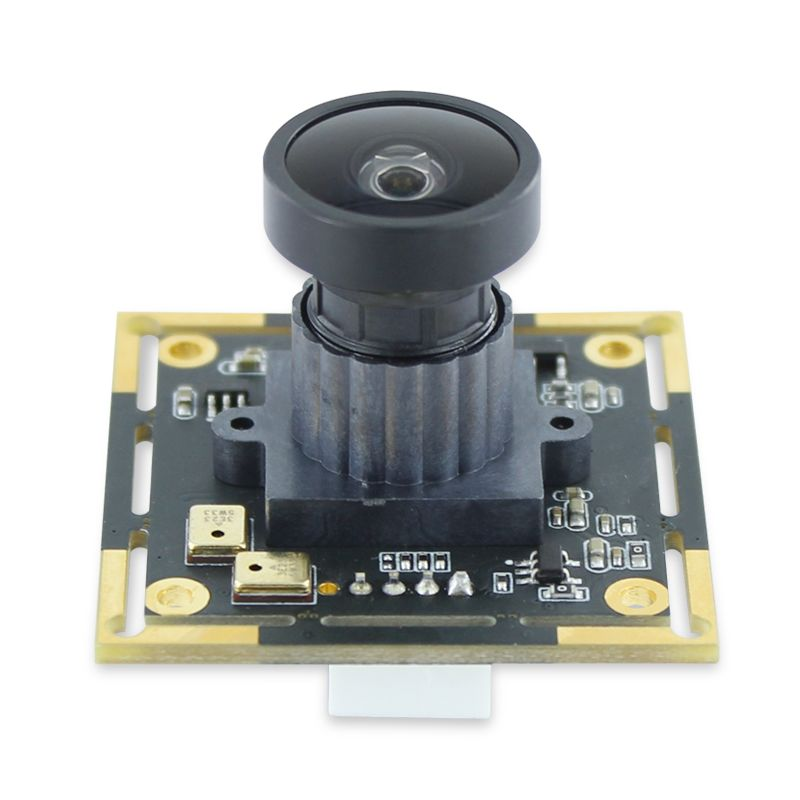

IMX291 (1/2.8 ) 1920*1080 30fps camera module with 130dgree
30fps Camera Module is compatible with various platforms such as Windows, Linux, and Android, and can capture video up to 2592x1944 resolution at 30fps.
Product Description
Experience crystal-clear imaging like never before. Our IMX291 camera module boasts a high-resolution sensor, delivering stunning 1920*1080 resolution, ensuring every detail is captured with precision and accuracy. Whether you're using it for surveillance, automotive applications, or any other scenario where image quality matters, this module guarantees exceptional results.
Smooth and fluid visuals are a hallmark of our 30fps camera module. With the ability to capture 30 frames per second, this camera module ensures a seamless video output, eliminating motion blur and providing a lifelike viewing experience. Whether you're recording fast-paced action or conducting real-time monitoring, our camera module guarantees smooth footage that captures every moment.
| Model No. |
HBVCAM-1917HD V33 |
| Model Size |
38mm × 32mm × 24.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption |
1000 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor |
IMX291 (1/2.8” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution |
1920*1080 |
| Sensitivity | 3300mv /(lux-sec) |
| Pixel Size | 2.9m x 2.9μm |
| Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| S/N Ratio | 42db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G |
| F/No | 1.0 |
| EFL |
6.0 mm |
| FOV | 130° |
| TV Distortion | <-20% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
The IMX291 (1/2.8) 1920*1080 30fps Camera Module offers unparalleled versatility. Its compact form factor and flexible design make it ideal for integration into various applications, including security systems, drones, industrial automation, and more. This module empowers you to explore new possibilities and unleash your creativity in the world of imaging. Click to view application details.
Installation and integration are hassle-free with our camera module. Designed for easy integration, it supports multiple interfaces and protocols, enabling seamless connectivity with different systems and platforms. Whether you're an experienced developer or a hobbyist, our camera module provides a user-friendly solution that fits your needs.
We prioritize performance and reliability in our camera modules. The IMX291 sensor, known for its exceptional image quality and low-light sensitivity, ensures clear and vivid imaging even in challenging lighting conditions. Additionally, our camera module undergoes rigorous testing and quality control processes to guarantee durability and long-term performance.
HUIBER prioritizes performance and reliability in our camera modules. The IMX291 sensor, known for its exceptional image quality and low-light sensitivity, ensures clear and vivid imaging even in challenging lighting conditions. Additionally, our camera module undergoes rigorous testing and quality control processes to guarantee durability and long-term performance.
Experience the power of our IMX291 (1/2.8) 1920*1080 30fps Camera Module. Whether you're looking to enhance security, elevate your photography, or explore new applications, this module is your gateway to high-quality imaging. Contact us today to learn more about our camera module and discover the endless possibilities it offers.
