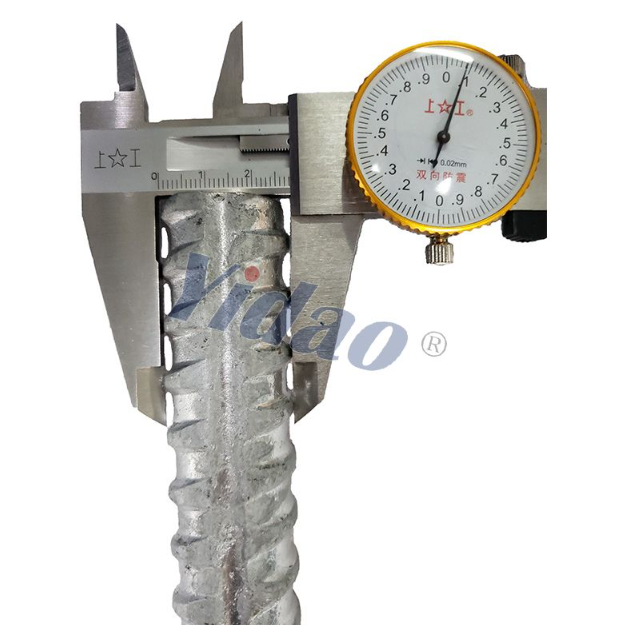

Dia 25mm-830 Thread Bar
The PSB830 thread bar is made of black steel with a continuous right-handed along the entire length of the bar.The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Product Description
Product Description
Thread Bar / Post-Tensioning Bar
φ25mm-PSB830
| Brand | Yidao | Standard | GB/T20065-2016 |
| Weight | 4.1 kg/meter | Yield/Tensile | 408/506 KN |
| Type | Hot Rolled | Meterial | Carbon Steel; Alloy Steel |
| Thread | Left Hand; Right Hand | Quality Control | 100% quality inspected |
| Surface | Self Color; Zinc Plated ; HDG ;Epoxy Coating | ||
| Application | Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling | ||
Length: 9m, 12m or as per customers' requirements
Technology: Hot rolled, right hand
Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar
Packing: in bundles
Delivery: 15-30 days
COMPOSITION:
The PSB830 thread bar is made of black steel with a continuous right-handed along the entire length of the bar.The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Typical Applications:
1. Rock bolts
2. Marine tie rod
3. Concrete anchoring system
4. Formwork tie bar
5. Geotechnical systems
6.Mining & Tunneling
7.Foundation Construction
Thread Bar Coating for Corrosion Protection:
Black or plain:Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
