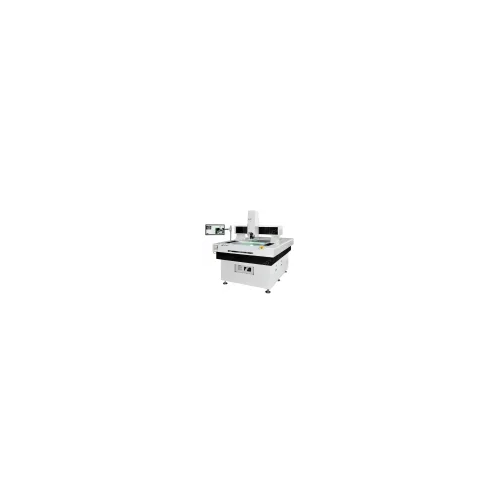

Auto/Manual-Type Video Measuring Instrument
Zhengye Technology offers Manual-Type Video Measuring Instrument and Auto Video Measuring Instrument.If you would like to receive detailed information and a quote, please contact us.
Product Description
Auto/Manual-Type Video Measuring Instrument
Two-dimensional measuring includes: points. lines. circles. rectangles. angle. contour. shape. surface shape and other geometric elements. A three-dimensional measuring probe is optional.
Usage
Two-dimensional measuring includes: points. lines. circles. rectangles. angle. contour. shape. surface shape and other geometric elements. A three-dimensional measuring probe is optional.
Technical Parameter
|
ITEM |
6050A |
8060A |
120100A |
220180A |
|
XYZ Stroke |
600*500*200mm |
800*600*200mm |
1200*1000*200mm |
2200*1800*200mm |
|
Loader Size |
698*665mm |
896*778mm |
1400*1100mm |
2300*1900mm |
|
Max Loading |
30KG |
|||
|
Objective Lens Focal |
90mm |
|||
|
Objective Lens |
0.7~5X |
|||
|
Grating Solution |
≤ 0.001mm |
|||
|
Total Machine Size |
1850*1960*1800 |
1950*2060*1800 |
2500*1800*1800 |
3500*3000*1900 |
|
Total Machine Weight |
1800kg |
2000kg |
3800kg |
7500kg |
