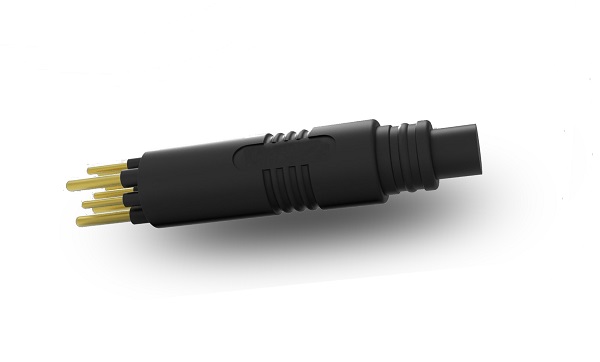

HIGO CONNECTOR-F.B-Z622 36V
HIGO CONNECTOR-F.B-Z622 36V
Product Description
Waterproof battery cable
Max Outer Diameter 22mm
Customized solutions
|
Rated Voltage |
36V AC/DC |
|
|
|
Rated Current |
Power 25A/45A,Signal 5A |
|
|
|
Withstanding Voltage |
500V |
|
|
|
Insulation Resistance |
≥20MΩ |
|
|
|
Contact Resistance |
≤10mΩ |
|
|
|
Mating Type |
Insertion Force 80N Max, Extraction Force 30N Min |
|
|
|
Mating Cycles |
3000Times |
|
|
|
Operation Temperature |
-25℃~+80℃ |
|
|
|
Protection Degree |
IP67 |
|
|
|
Max Outer Diameter |
22mm |
|
|
|
Mating Length |
66mm |
|
|
|
Contact Material |
Copper alloy plated with gold which conforms to military standard |
|
|
|
Wire Section |
0.34mm²+ 4.0mm²/2.0mm² |
|
|
We are professional high-quality Battery connector manufacturer. We provide you with Variety of connectors，such as High-power Battery connector.
