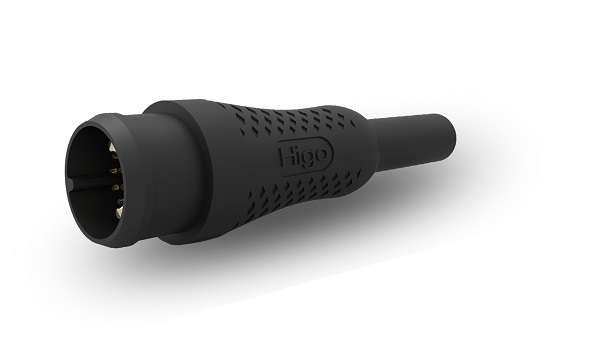

HIGO CONNECTOR-F.M-Z1115
HIGO CONNECTOR-F.M-Z1115
Product Description
Contact pin range is 9~11
Meet the requirements of gb and non - standard wire
Customized solutions
|
Rated Voltage |
60V AC/DC |
|
|||
|
Rated Current |
2A/25A |
|
|||
|
Withstanding Voltage |
700V |
|
|||
|
Insulation Resistance |
≥20MΩ |
|
|||
|
Contact Resistance |
≤10mΩ |
|
|||
|
Mechanical Characteristics |
|||||
|
Mating Type |
Insertion Force 100N Max, Extraction Force 50N Min |
|
|
|
|
|
Mating Cycles |
200Times |
|
|
|
|
|
Performance |
|||||
|
Operation Temperature |
-25℃~+80℃ |
|
|
|
|
|
Protection Degree |
IP67 |
|
|
|
|
|
Wires Specification |
|||||
|
Max Outer Diameter |
15mm |
|
|
|
|
|
Mating Length |
70mm |
|
|
|
|
|
Contact Material |
Copper alloy plated with gold which conforms to military standard |
|
|
|
|
|
Wire Section |
0.20mm²+2.50mm² |
|
|
|
|
We are professional high-quality Battery connector manufacturer. We provide you with Variety of connectors，such as High-power Battery connector.
