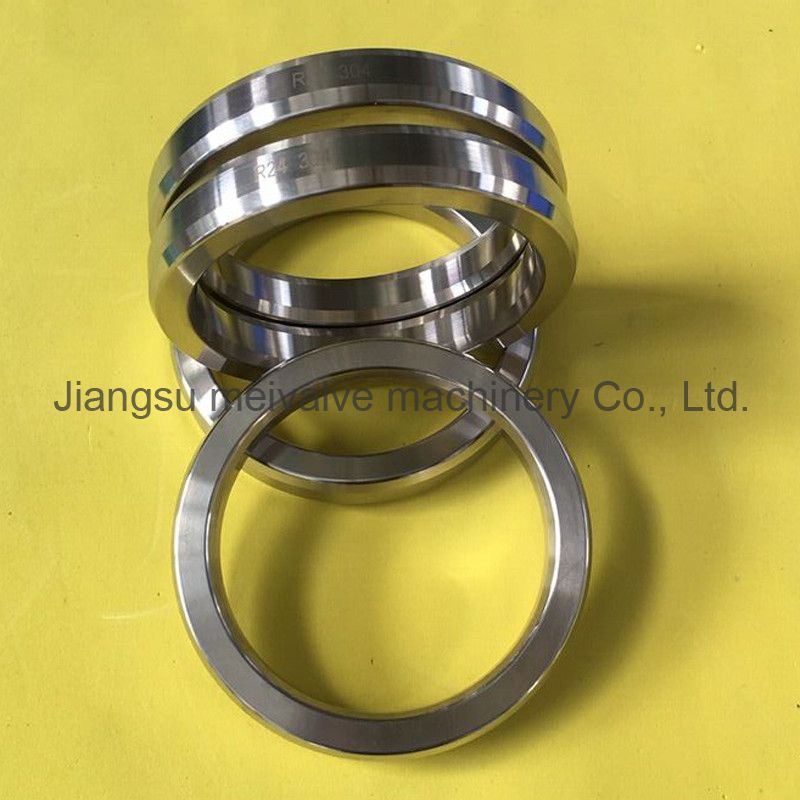

ring joint gasket
The Ring Joint Gasket Type: BX, RX, R(Oval & Octagonal), the Ring Joint Gasket is mainly used in high-pressure, and temperature applications in the petroleum industry. Mostly used for Valves, Pipes and Flanges.
Product Description
https://www.apimeivalve.com/product-ring-joint-gasket.html
Product Description
1. The Ring Joint Gasket Type: BX, RX, R(Oval & Octagonal), the Ring Joint Gasket is mainly used in high-pressure, and temperature applications in the petroleum industry. Mostly used for Valves, Pipes and Flanges.
2. Standard R types are in accordance with API 6A and ASME B 16.2 size. For both Oval and Octagonal configurations. They can interchange on the modern octagonal-type groove flange.
3. RX Type ring joint gaskets are manufactured to fit the API 6B flange"s groove, interchangeable with R(oval) and R(octagonal) series, bear pressure can reach 15000 PSI, so these gaskets performance excellent in 6B flange, suitable to the higher pressures with higher vibrations and heavier weights of these units. Spec.: RX20~RX215
4. BX-type ring joint gaskets are designed for BX flange grooves only, it is suitable for higher-pressure ratings starting at 2, 000 lbs and ending with 20, 000 lbs, incorporate a pressure balance hole to ensure equalization of pressure which may get trapped in the grooves.
5. The Ring Joint Gasket materials: Carbon Steel, Soft Iron, SS304, F5, 321, 304L, 316L, 316, 347. Or other materials according to your request.
