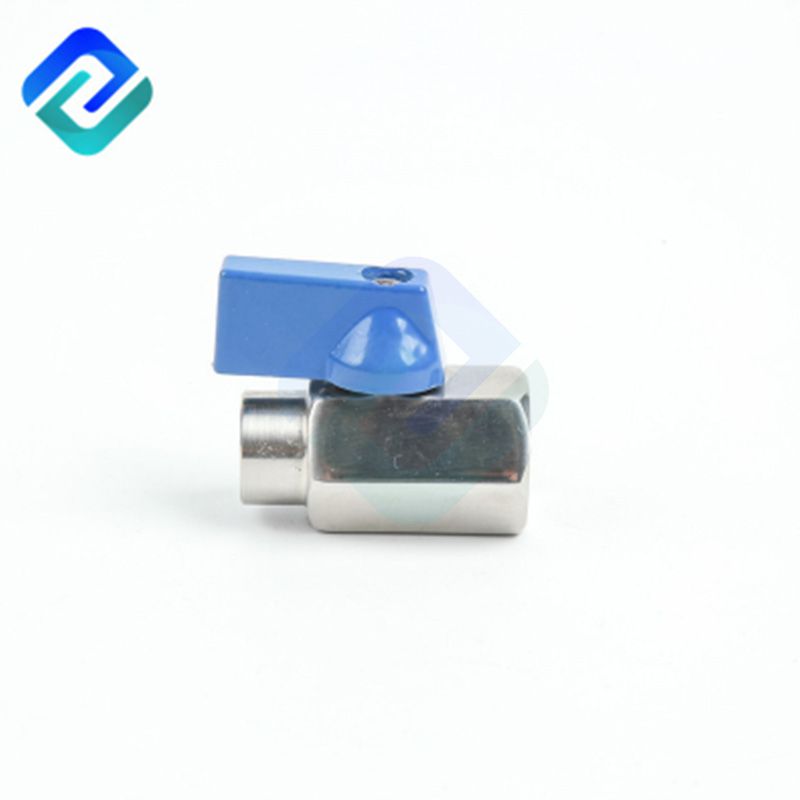

Hot Selling Stainless steel 304 and 316 thread BSP MINI exagonal ball valve

Mini ball valve is suitable for PN1.0 ~ 4.0MPa, working temperature -29 ~ 180 ℃ (seal ring is reinforced polytetrafluoroethylene) or -29 ~ 300 ℃ (seal ring is para-polystyrene)

Product Description

Hot Selling Stainless steel 304 and 316 thread BSP MINI exagonal ball valve

Mini ball valve is suitable for PN1.0 ~ 4.0MPa, working temperature -29 ~ 180 ℃ (seal ring is reinforced polytetrafluoroethylene) or -29 ~ 300 ℃ (seal ring is para-polystyrene)

On the pipeline, it is used to cut off or connect the medium in the pipeline, choose different materials, and can be applied to various media such as water, steam, oil, nitric acid, acetic acid and so on.

Hot Selling Stainless steel 304 and 316 thread BSP MINI exagonal ball valve

Hot Selling Stainless steel 304 and 316 thread BSP MINI exagonal ball valve

Hot Selling Stainless steel 304 and 316 thread BSP MINI exagonal ball valve





MATERIAL LIST



ITEM

PART

MATERIAL

QTY

1

0-RING

VITON

1

2

STEM

304

316

1

3

BOLT

304

2

4

LEVER

ALUMINUM ALLOY

1

5

BODY

CF8/CF8M

2

6

CAP

CF8/CF8M

1

7

BALL SEAT

PTFE

1

8

BALL

304

316

1

9

BALL SEAT

PTFE

1

10

THRUST WASHER

PTFE

1



DIMENSION TABLE



SIZE

D

L

H

W

S

DN8

1/4”

8.0

39

26

23

21

DN16

3/8”

8.2

42

26.5

23

21

DN15

1/2”

9.2

46

28.5

23

26

DN20

3/4”

12.5

55

32

23

31

DN25

1”

15.5

66

33.5

23

39





Tags: Mini Ball Valve, Mini Valve, Stainless Steel Mini Ball Valve
