Venturi Pattern Plug Valve 300LB

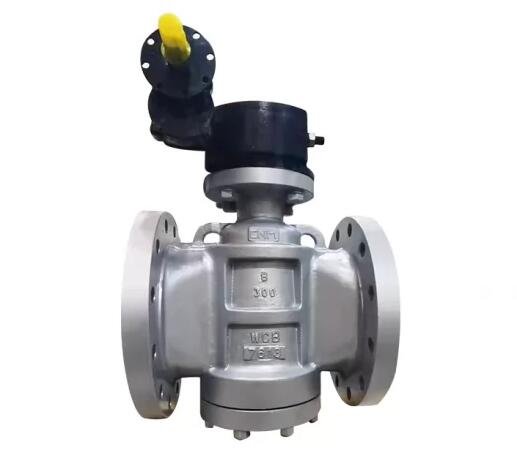

CNM Venturi Pattern Plug Valve

Venturi pattern plug valve can be used as ideal cutting off valves in any working condition, including most critical environments, which feature very compact in design, requiring only less installation space. So, it can also be applicable in such occasions as quick action, without failure, and highly effect tightness, to be installed at any random position. The basic operation of this kind plug valve is quite convenient. The valve will open to the closing position as they turn at 90, and vise versa.

Specification of Venturi Pattern Plug Valve

Design and manufacture: API599

Faco to face: ASME B16.10

Flange end: ASME B16.5

Test: API598

Bore: Reduce

Class: 300LB

Shell: 7.5MPa

Seal(W): 5.5MPa

Seal(G): 0.6MPa

Property TEM.: -29℃—150℃

Suitable medium: Water, Gas, Oil
