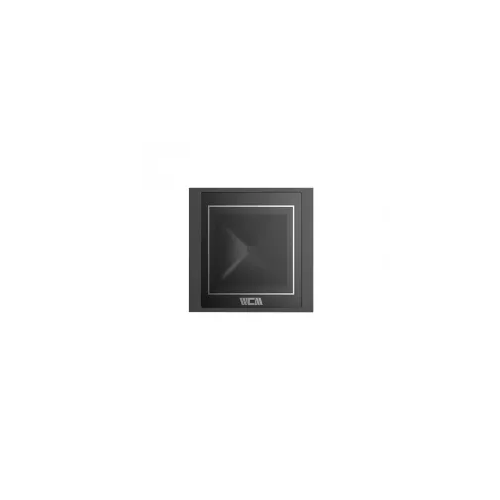

Barcode NFC Card Access Control Reader

Barcode NFC Card Access Control Reader

• The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers.

• Flexible, optional relay.

• Support non-contact ic cards, type A/B, M1 card.

• Support customized software according to customer’s requirements.

• Various interface is available wiegand, RS232, RS485, USB, Ethernet.

• Suitable for such as control of the elevator, commuity, office, club, factory, school and so on.

• DESCRIPTION

• Module		AC8030
  Morphology Interface	Dimensions	86mm*86mm*38mm
  	Material	PC+ armoured glass
  	Weight	100g
  	Voltage	DC 12V(5V-30V)  ,USB 5V
  	Current	<160mA 12V
  	Interface	Wiegand，RS232，RS485，USB
  Code Scanning Performance	Image Sensor	640 x 480 CMOS，30fps
  	View Angle	Horizontal 63°, Vertical51°
  	Scan Angle	Roll:360°, Pitch:±60°, Skew:±50°
  	Support Code	On by default：EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrixOff by default：Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
  	Reading Distance	0-200mm (6-inch mobile phone, wechat QR payment code)
  	Resolution	1D：≥5mil / 2D：≥10mil
  	Symbol Contrast	≥ 25%
  	Recognition Mode	Active / passive, with support for induction mode
  	Scan Code Feedback Beep	Beeping; the green light indicates scanning code
  	Support Card	ISO14443A / B, support ID card physical ID, NFC mobile phone, Mifarecard
  Environmental Parameters	Operating Temperature	-20℃ ~ 60℃
  	Operating Humidity	5%RH~95%RH（Non-condensing）
  	Storage Temperature	-40℃ ~ 80℃
  	Ambient Lighting	0-80000Lux
  	Static Protection	Contact discharge ± 6KV and air discharge ± 12KV
  	IP Protection	Front IP54
